    • LZR

    Fast Forward.

    Flow LZR series delivers accuracy on both thin and thick materials. Built for high-volume production, its advanced dual-drive gantry and fast automatic shuttle table system ensure seamless, efficient operation.

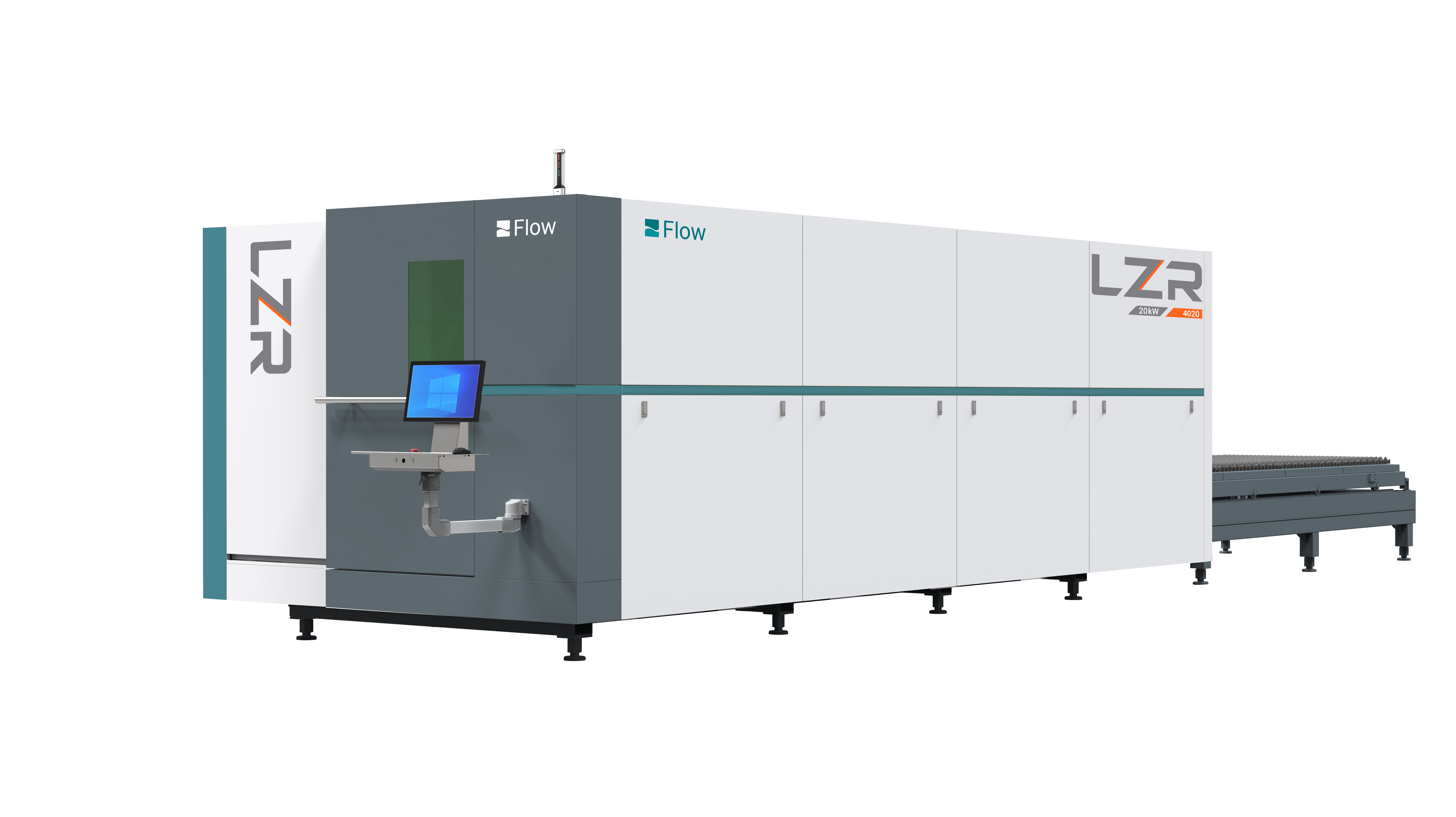

    Flow LZR 3015 rendering

    Key Features

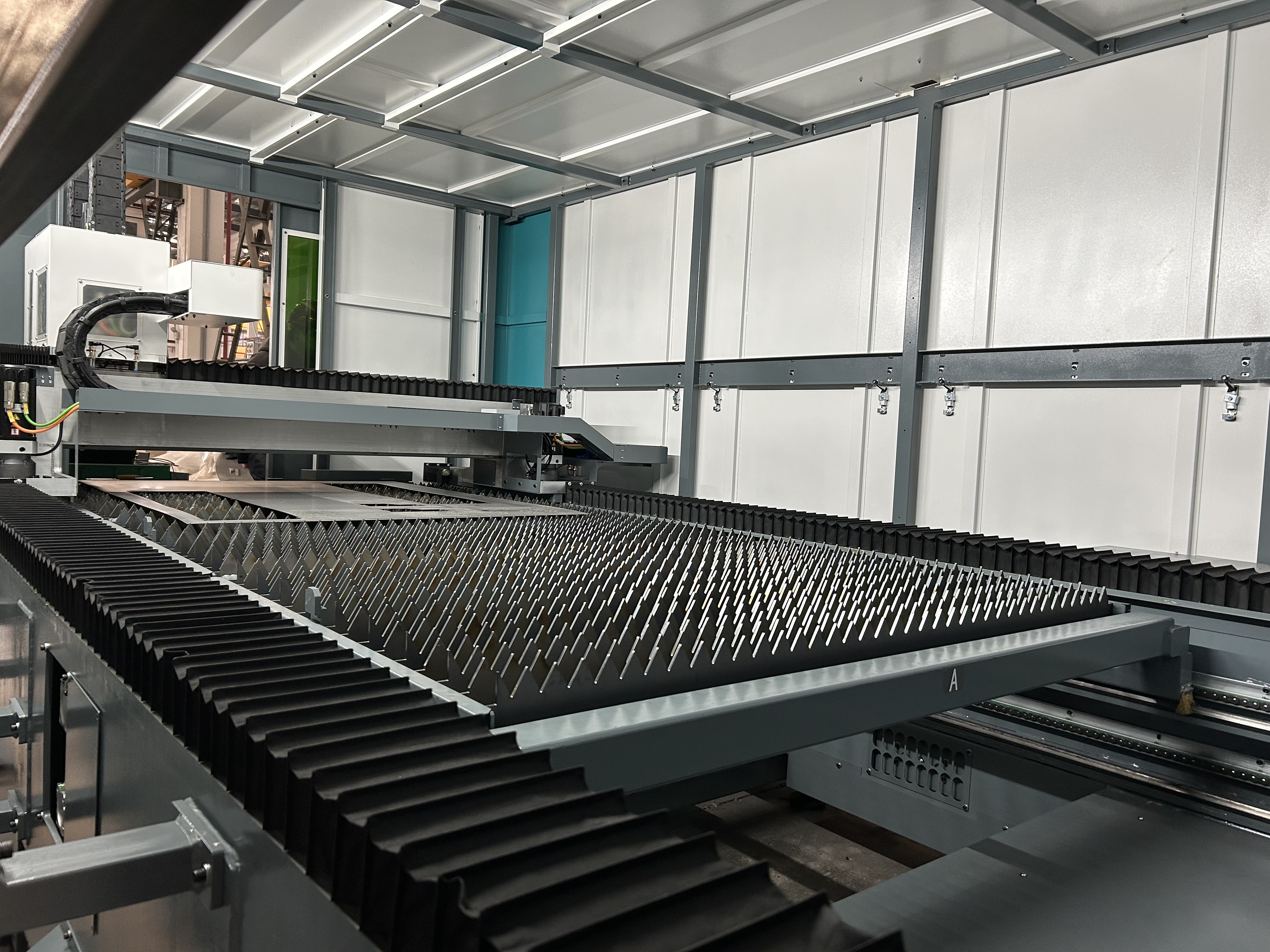

    dual-drive gantry

    Dual-Drive Gantry

    AC Servo actuated, dual-drive gantry maximizes stability, reduces vibration at high speed, and ensures part quality.
    dual-pallet load/unload

    Dual-Pallet (LST) Load/Unload

    Standard laser shuttle tables provide swift exchange for sheets as well as a gateway to material handling automation.

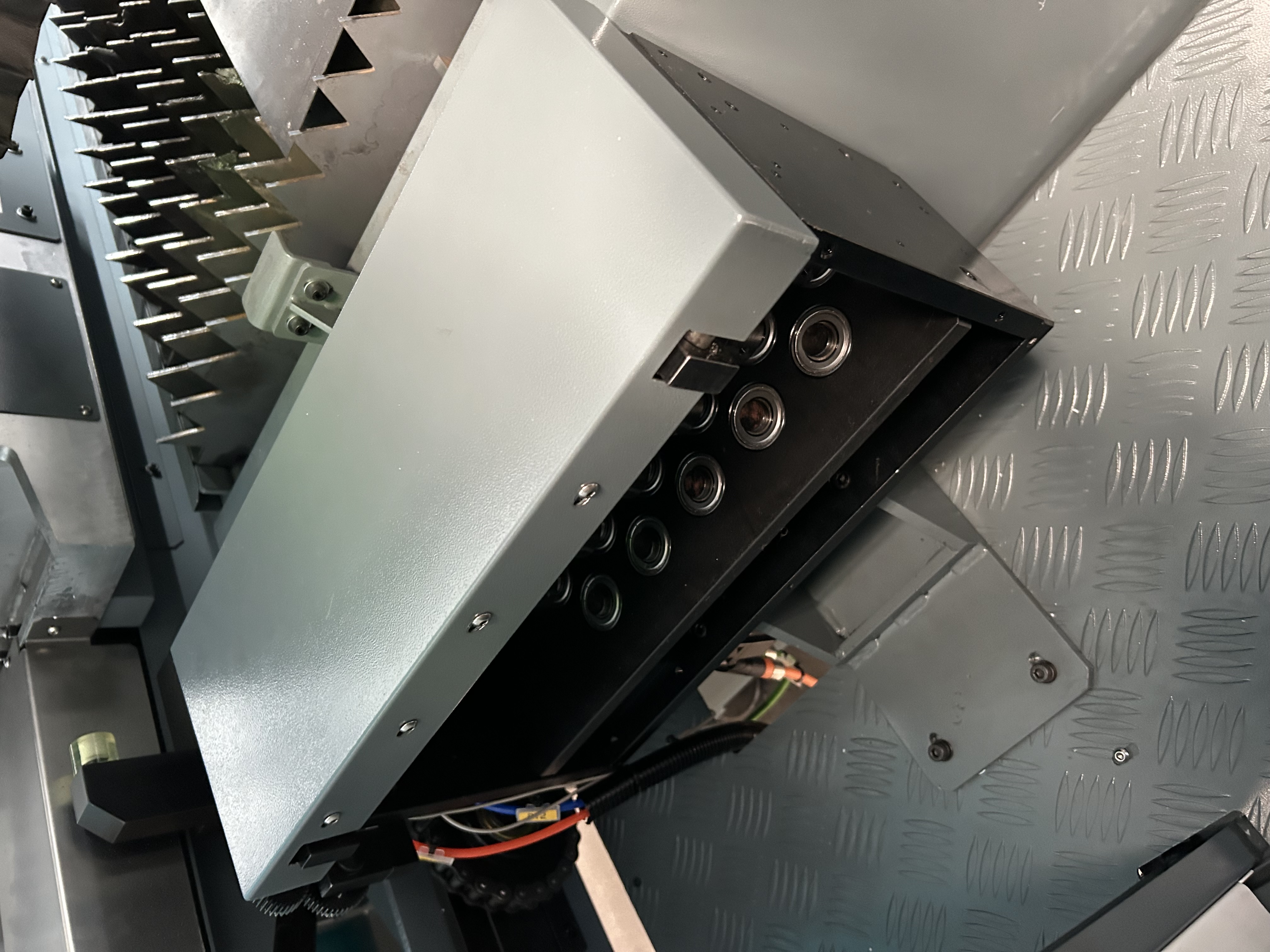

    automatic nozzle changer

    Automatic Nozzle Changer

    Systematic swap of cutting head tips for new materials and back-up replacements for continuous production runs.

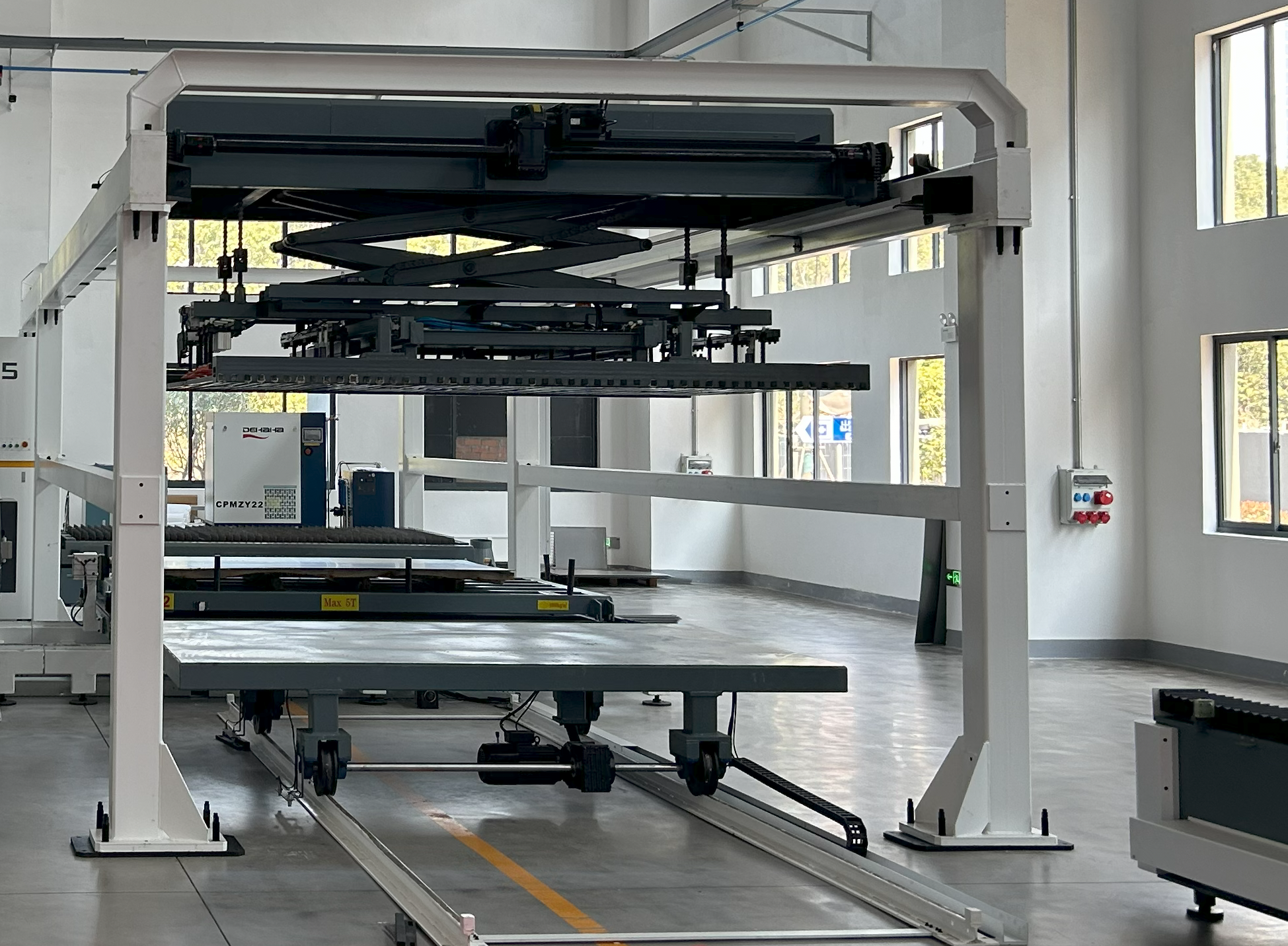

    laser automation

    Automation Options

    Seamless integration utilizing the standard laser shuttle tables with minimum idle time; equal to a single exchange.

    LZR Series Sizes

    LZR in 3015 configuration

    LZR 3015

    Work Envelope: 120" x 60"

    LZR in 4020 configuration

    LZR 4020

    Work Envelope: 159" x 79"

    General Specifications

    Power
    6 kW, 12 kW, 20 kW
    Work Envelope
    LZR 3015: 120 x 60 in
    LZR 4020: 158 x 79 in
    Z-Axis Travel
    11.75 in
    Linear Positional Accuracy
    ± .001 in
    Repeatability
    ± .0007 in
    X/Y Max Speed
    3,900 in/min
    Max Weight of Workpiece
    4,400 lbs
    Machine Size
    LZR 3015: 342 x 119 x 83 in
    LZR 4020: 398 x 119 x 85 in

    Core Component Options

    Cutting Head Technology

    Auto-Focus Cutting Head
    Adjusts for varying thicknesses in piercing and cutting with a capacitive sensor for slight variations in material plane.

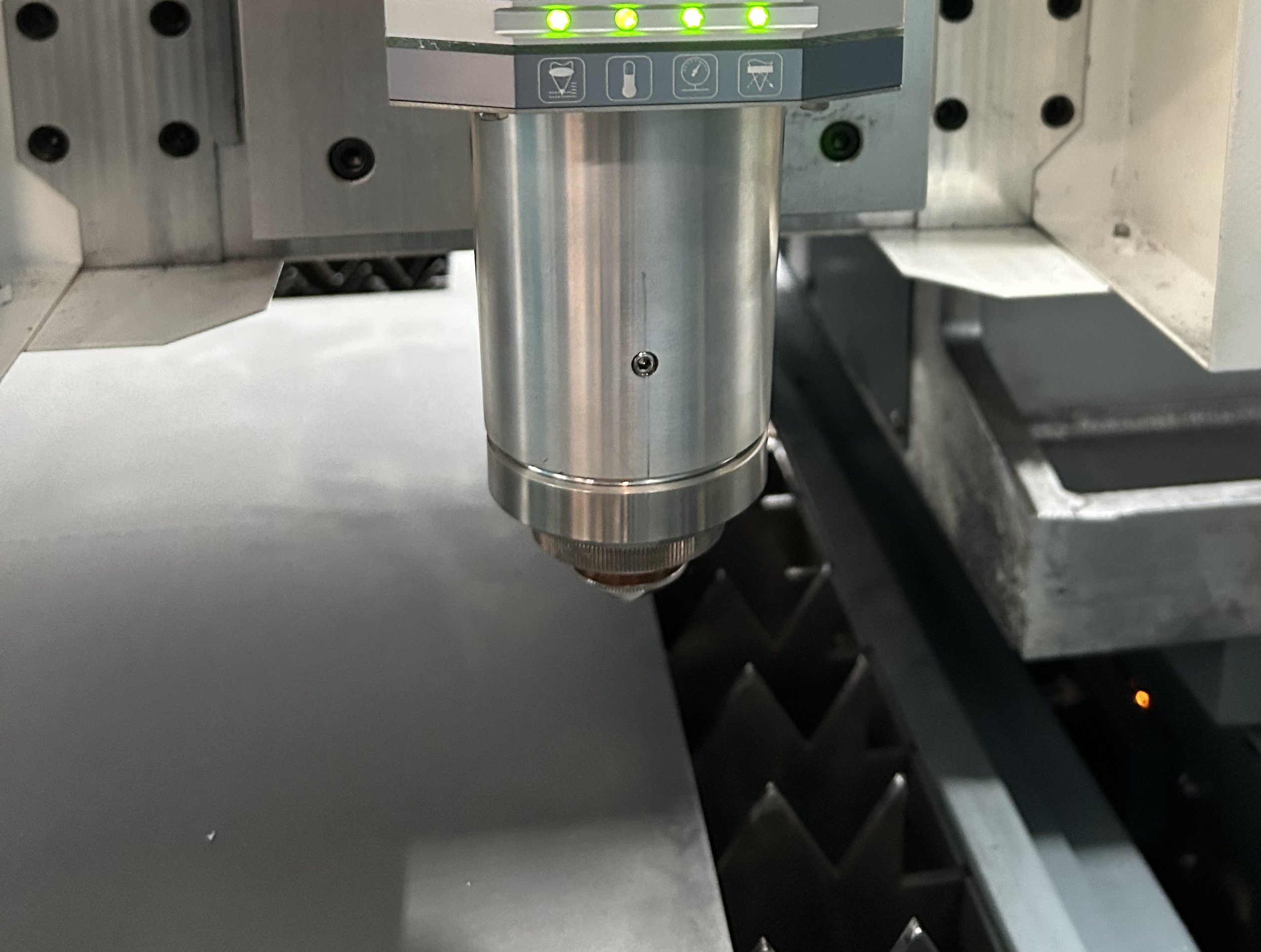

    laser cutting head

    Software

    Windows-based CNC G.L.A.S.S. (Graphical Laser Application System Software).
    computer screen with screensaver showing

    Service Guarantee

    With the LZR series, you can rely on Flow to partner with you for service, parts, training, and beyond. Flow has established an industry standard with our waterjet cutting technology, which we've now expanded to lasers, providing complete solutions for machine systems, software, service, and support.

    We are committed to providing you with the tools you need to keep your system running at its best. Professional training is available in both classroom settings, as well as on-site.
